Developer Guide

• Acknowledgements
• Setting up, getting started
• Design
• Implementation
• Testing
• Appendix: Requirements

Acknowledgements

Thanks to Prof Damith C.Rajapakse and Boyd Anderson provide consultation for me.

Setting up, getting started

Refer to the guide Setting up and getting started.

Design

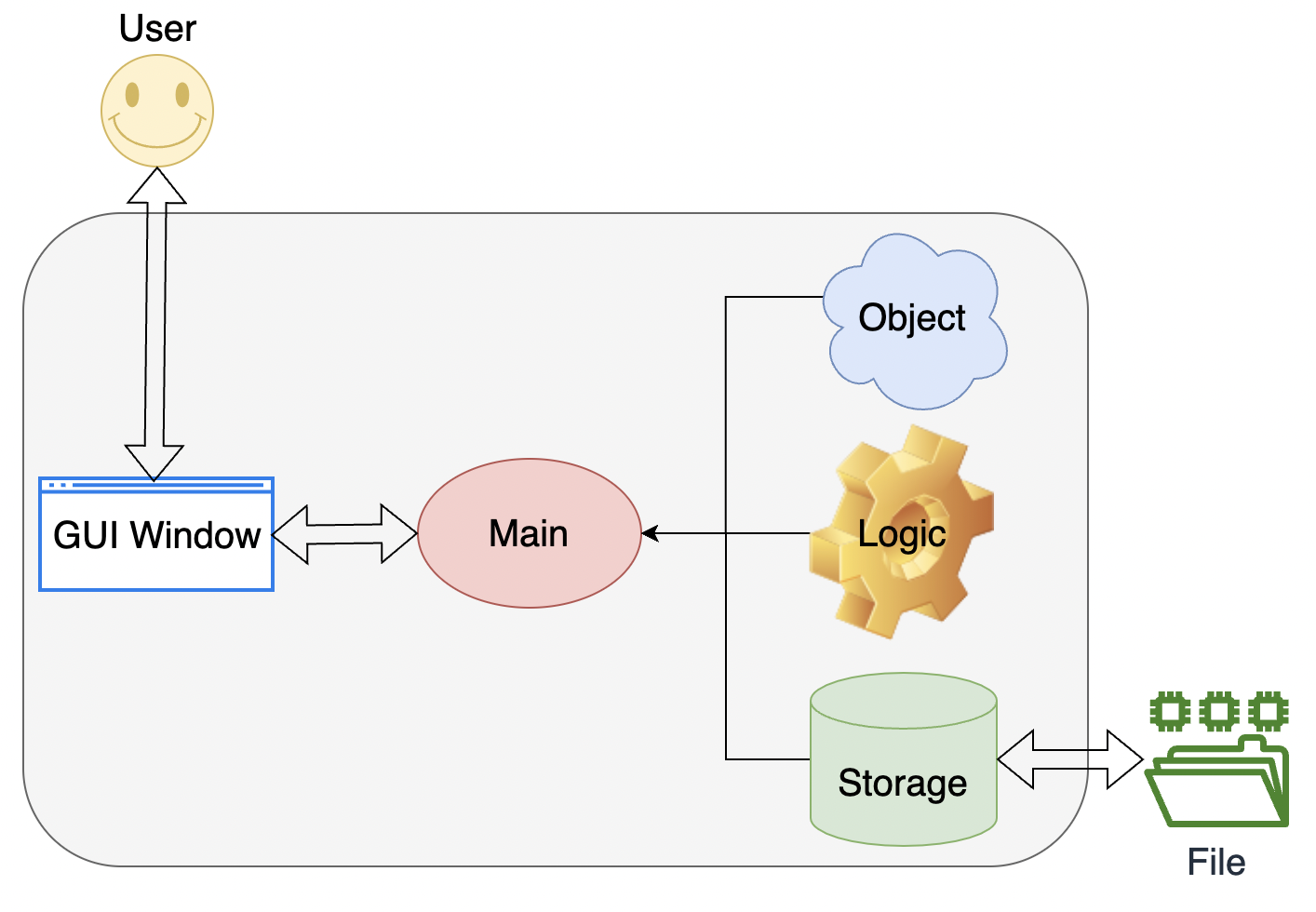

• Architecture


• UI component (UI, Input / Output, DialogBox, MainWindow, Main, Launcher)
• Logic component (Duke, Execution, Command, Parser)
• Model component (Task, TaskList)

• Storage component (Storage) API: Storage.java

  The Storage component,
  a. can save duke.txt file to /data folder and load the duke.txt file back /data folder with corresponding format.
  b. auto save when user execute done, edit, delete and add command

  File format showing as below,

        T | Y | borrow book
        D | N | return book | 20-11-2019
        E | N | party | 21-11-2019


• Common classes (TaskList)

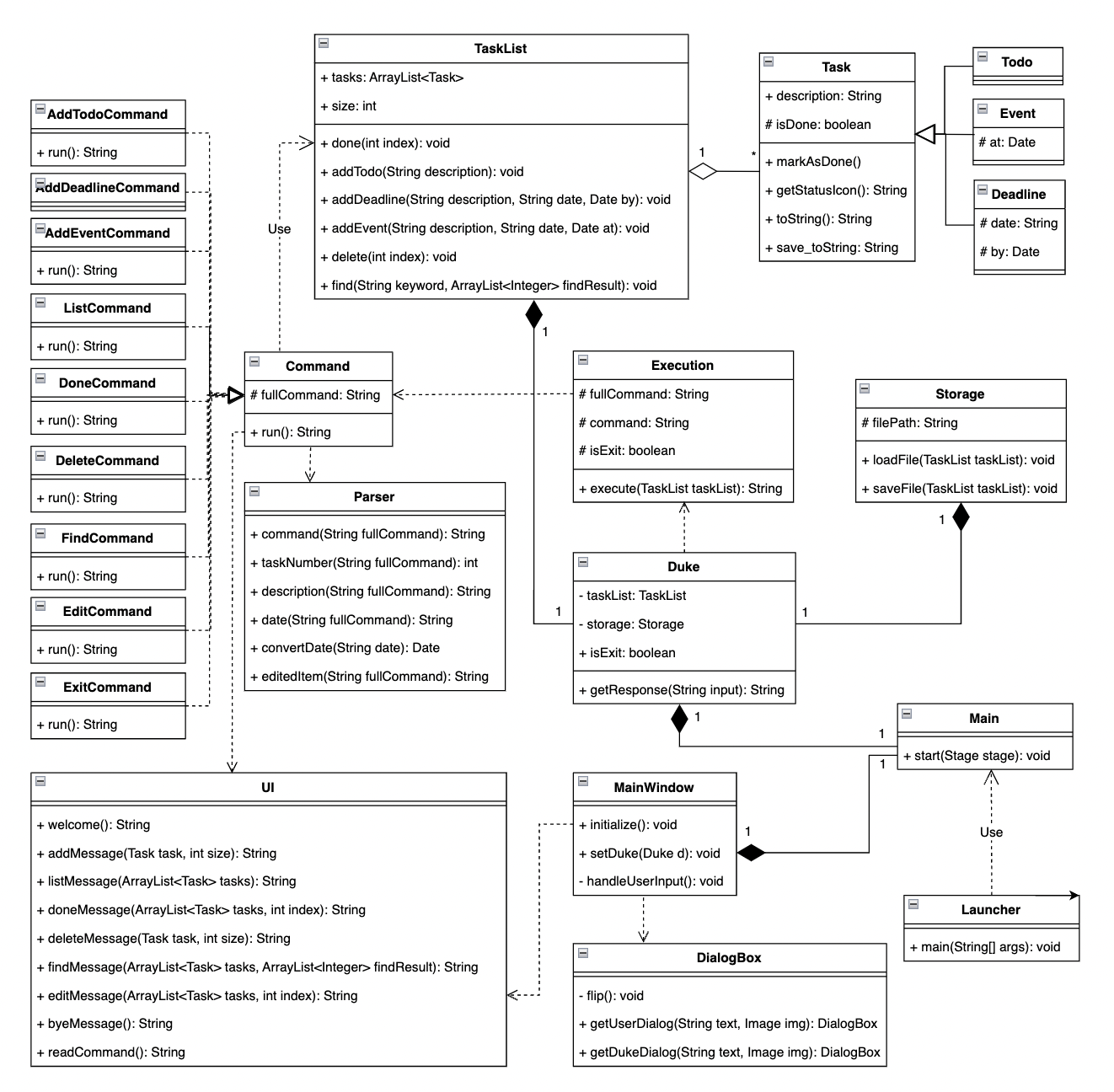

• Class diagram

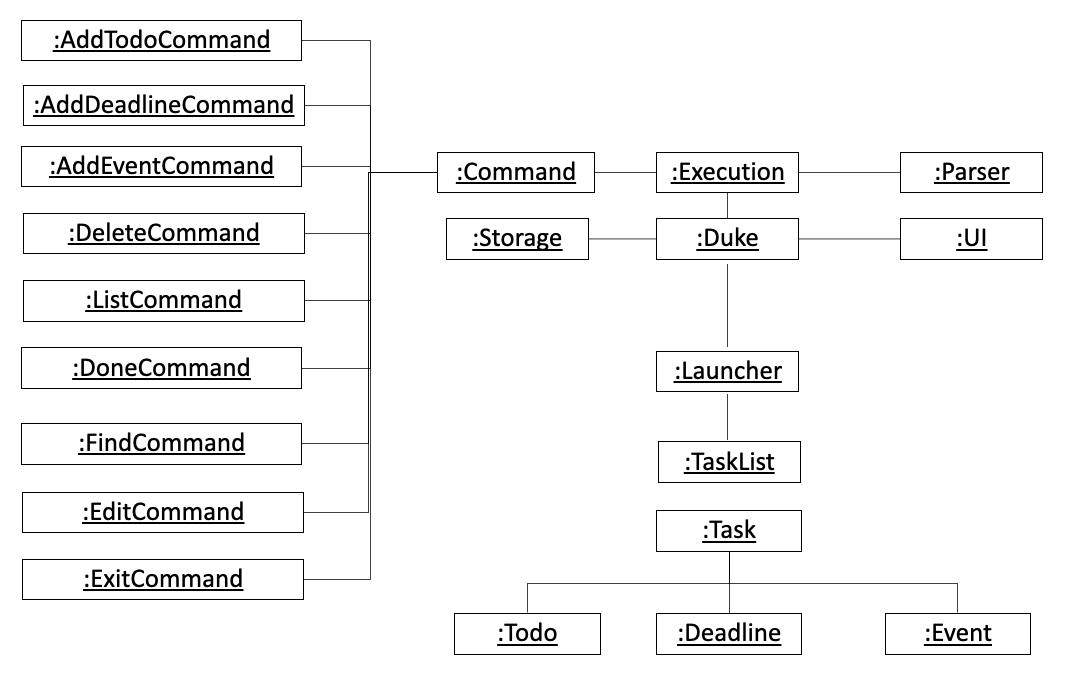

• Object diagram

Implementation (Sequence Diagram)

• List Command
  The user execute list command to show all the tasks in the list.
  UI scanned list command from user, Execution create a new ListCommand and run() to get the tasks from list, taskList return the items to UI and show to user.

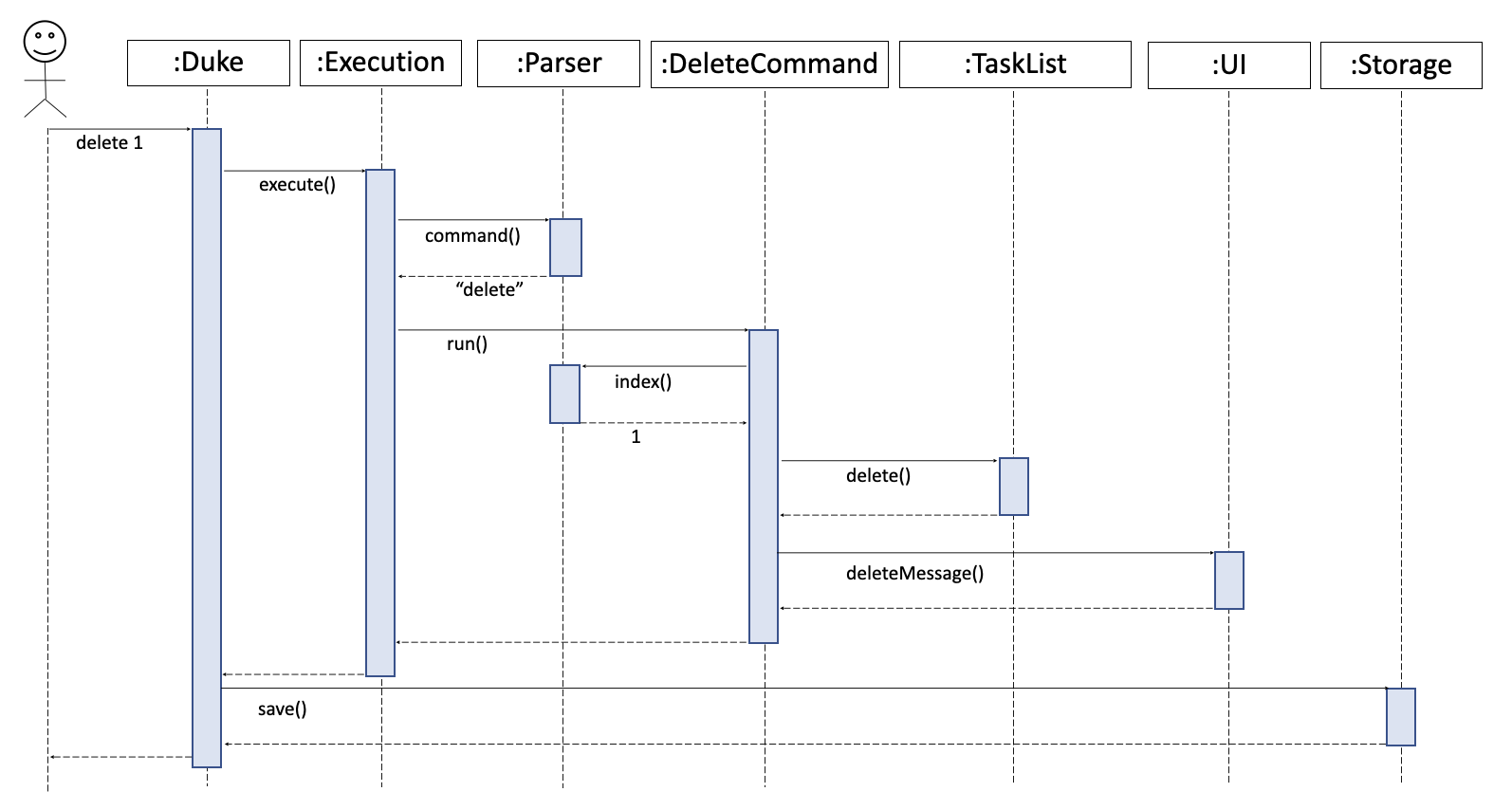

• Delete Command
  The user execute delete INDEX command to delete the task in the task list.
  The working flow of the deleteCommand is shown in the sequence diagram below.

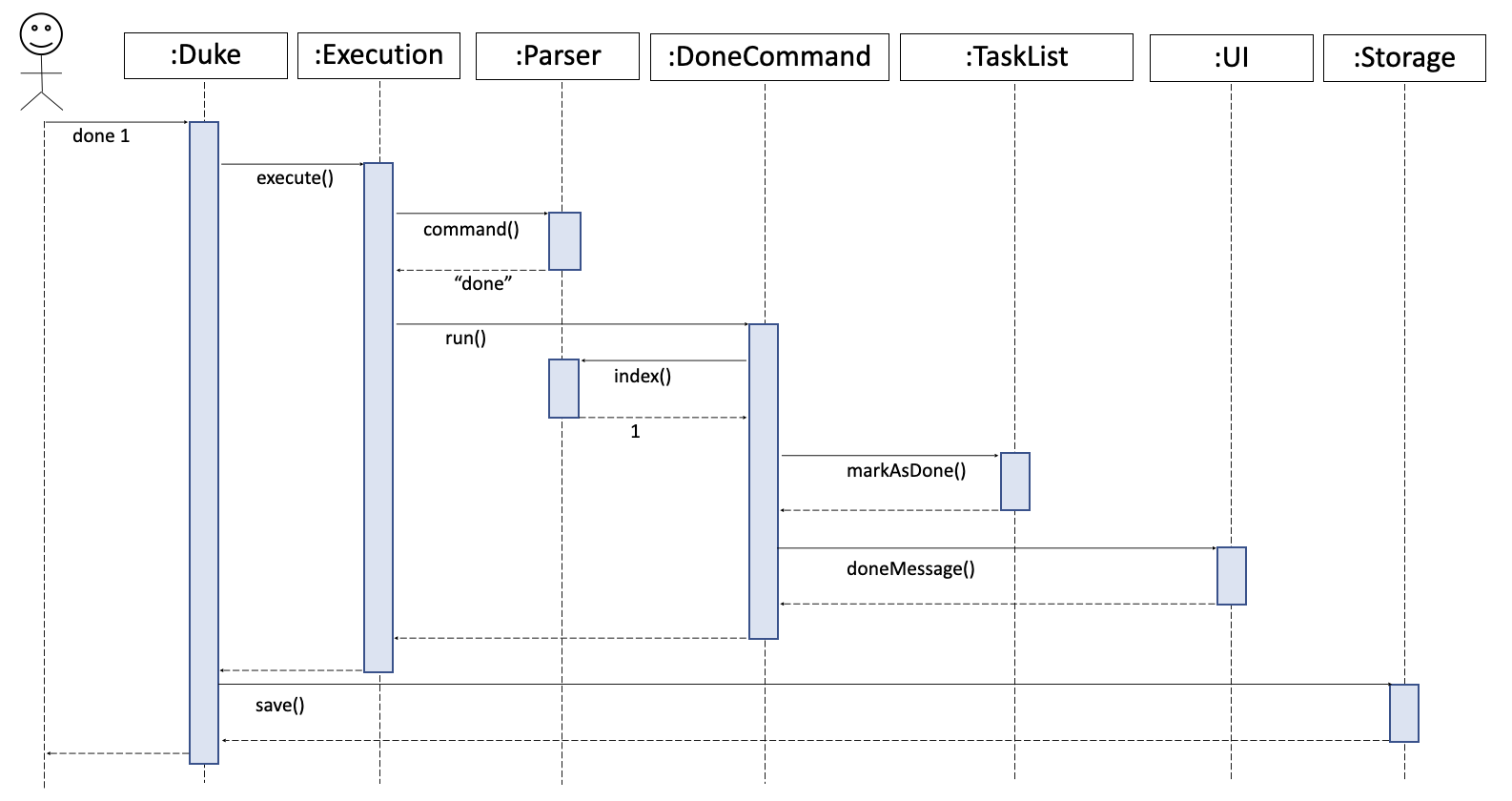

• Done Command
  The user execute done INDEX command to mark the completed task in the item list.
  The working flow of the doneCommand is shown in the sequence diagram below.

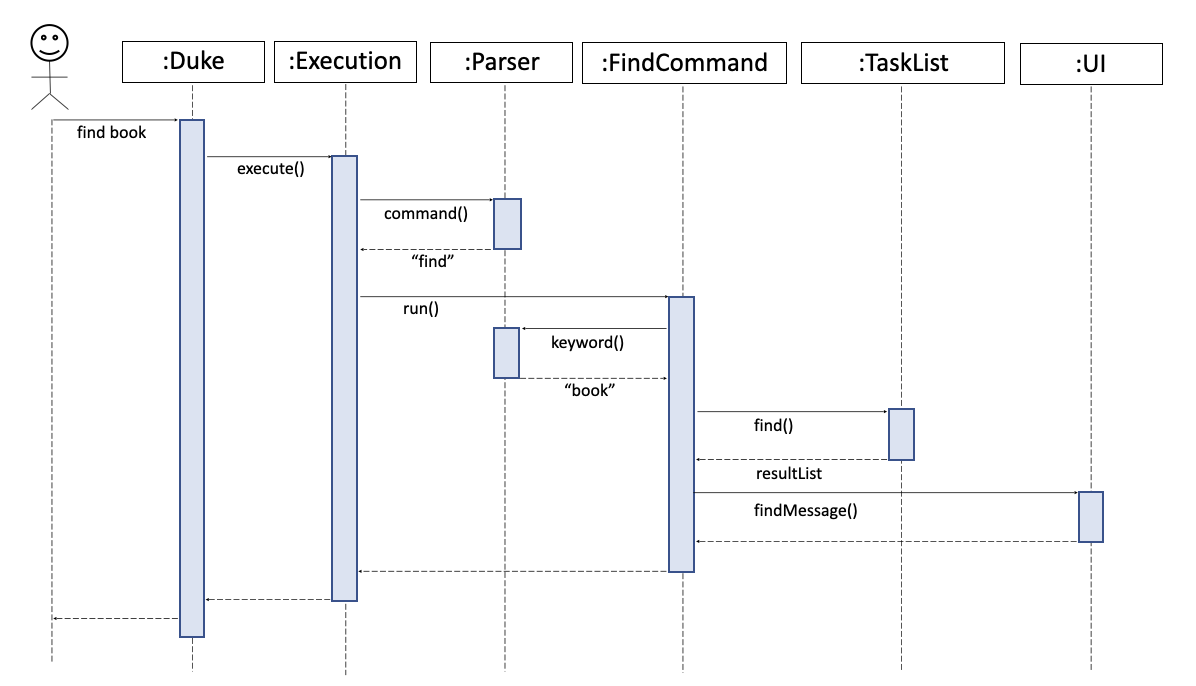

• Find Command
  The user execute find KEYWORD command to search tasks contain KEYWORD in the task list.
  The working flow of the findCommand is shown in the sequence diagram below.

• Exit Command
  The user execute exit command to quit the program.
  The working flow of the exitCommand is shown in the sequence diagram below.

Testing

• Testing Guide
  There are two ways to run tests:

  1. Using IntelliJ JUnit test runner. Run all tests, right-click on the src/test/java folder </br> a. choose Run ‘All Tests’ </br> b. Run a subset of tests, you can right-click on a test package, test class and select Run ‘ParserTest’ </br>
  2. Using Gradle Open a console and run the command gradlew clean test (Mac/Linux: ./gradlew clean test)

Appendix: Requirements

Product scope

Target user profile

• has a need to manage and track daily tasks
• prefers desktop apps over other types
• prefers typing to mouse interactions
• is reasonably comfortable using CLI apps

Value proposition

• keep information of all daily tasks
• track daily tasks easily
• record the date of tasks

User Stories

Version	As a …	I want to …	So that I can …
v1.0	user	add task with description	record all the tasks
v1.0	user	view all the tasks	know the status of the tasks
v1.0	user	delete the task	remove the task which is assigned to others
v1.0	user	have exit command	quit the system without using mouse
v2.0	user	mark completed tasks	know which tasks are not completed yet
v2.0	user	add task with description and date	know when is the schedule of the task
v2.0	user	search tasks with keyword	view the specific task quickly
v2.0	user	save task list as file	print record into hard copy
v2.0	user	read previous tasks from the file	continue to add task from the previous record
v3.0	user	have interact with system via GUI	have more fun while using the system
v3.0	user	edit the item without deleting it	rectify the task with wrong information quickly

Use Cases

(For all use cases below, the System is DukePro (Duke) and the Actor is the user, unless specified otherwise)

Use case: Add Todo

1. User keys in todo task description
2. Duke records the todo task
3. Duke shows the todo task added successfully
4. Data file updated automatically

Use case: Add Deadline

1. User keys in deadline task description and date
2. Duke records the deadline task
3. Duke shows the deadline task added successfully
4. Data file updated automatically

Use case: Add Event

1. User keys in event task description and date
2. Duke records the event task
3. Duke shows the event task added successfully
4. Data file updated automatically

Use case: List Items

1. User requests to view tasks
2. Duke shows the list of tasks

Use case: Delete Item

1. User requests to delete a specific task
2. Duke deletes the task from the list
3. Duke shows the item deleted successfully
4. Data files updated automatically

Use case: Done Item

1. User requests to update a specific task when it is done
2. Duke marks the task as done
3. Duke shows the task updated successfully
4. Data files updated automatically

Use case: Find Items

1. User keys in the keyword to search
2. Duke performs searching
3. Duke displays the result

Use case: Edit Item

1. User requests to edit a specific task with new description
2. Duke updated the task in the list
3. Duke shows the task updated successfully
4. Data files updated automatically

Use case: Exit

1. User requests to exit the program
2. Duke terminates safely

Non-Functional Requirements

• Should work on any mainstream OS as long as it has Java 11 or above installed.
• Should be able to hold up to 1000 tasks without a noticeable sluggishness in performance.
• The command should be simple enough so that users are able to accomplish most of the tasks faster using typing than using the mouse.
• Should be easy for new users to get used to usage.

Glossary

Mainstream OS: Windows, Linux, Unix, OS-X
